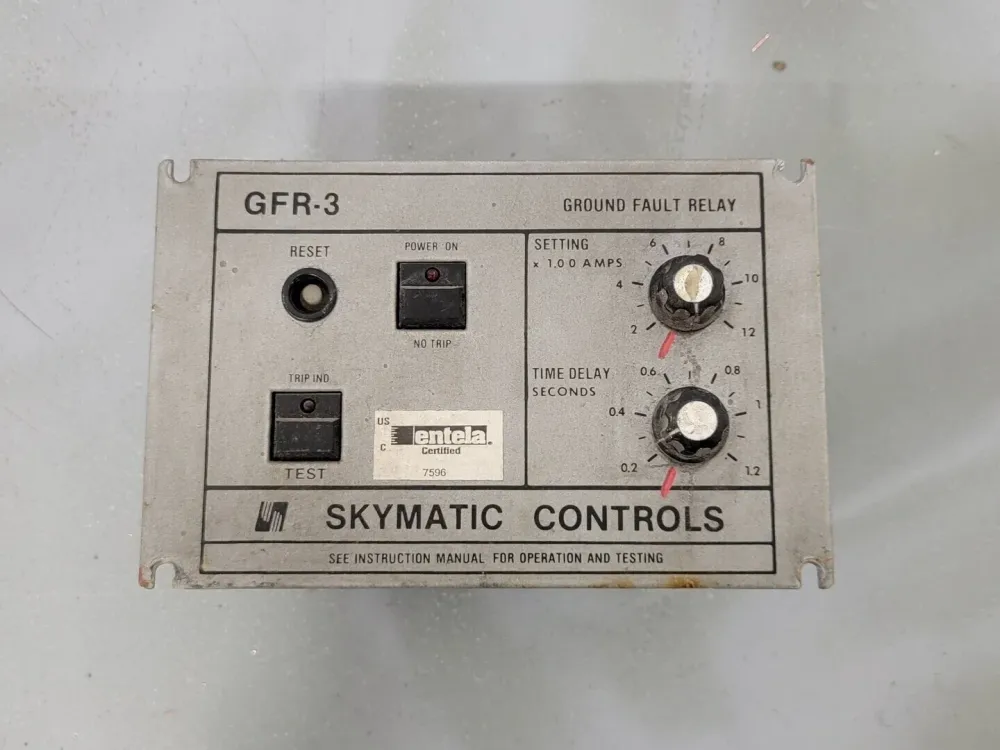

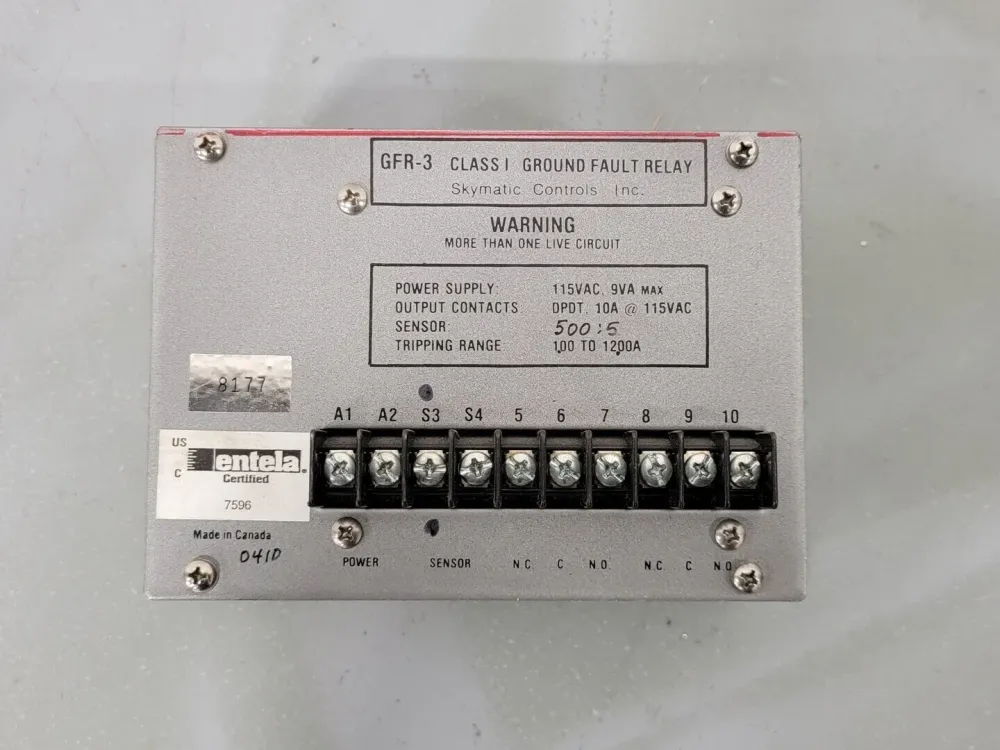

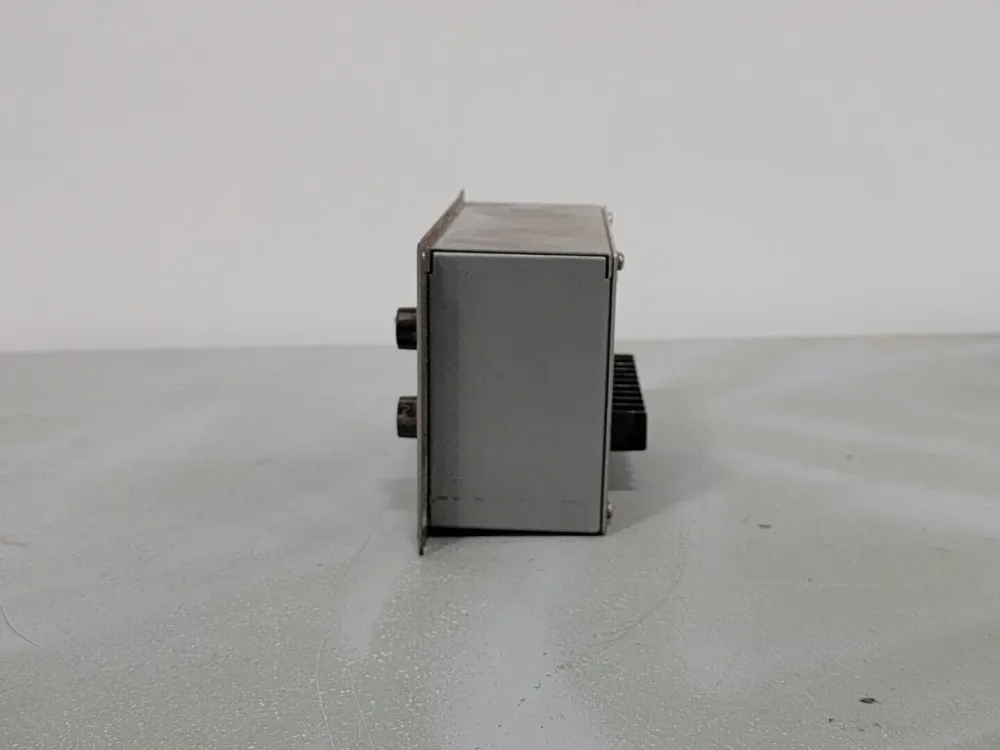

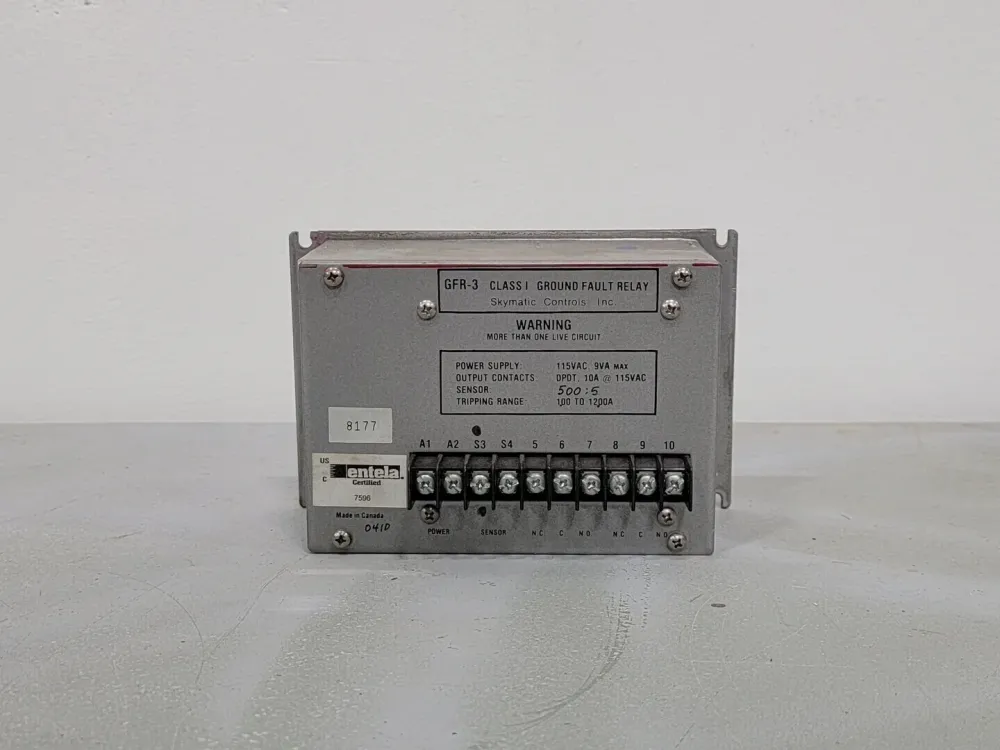

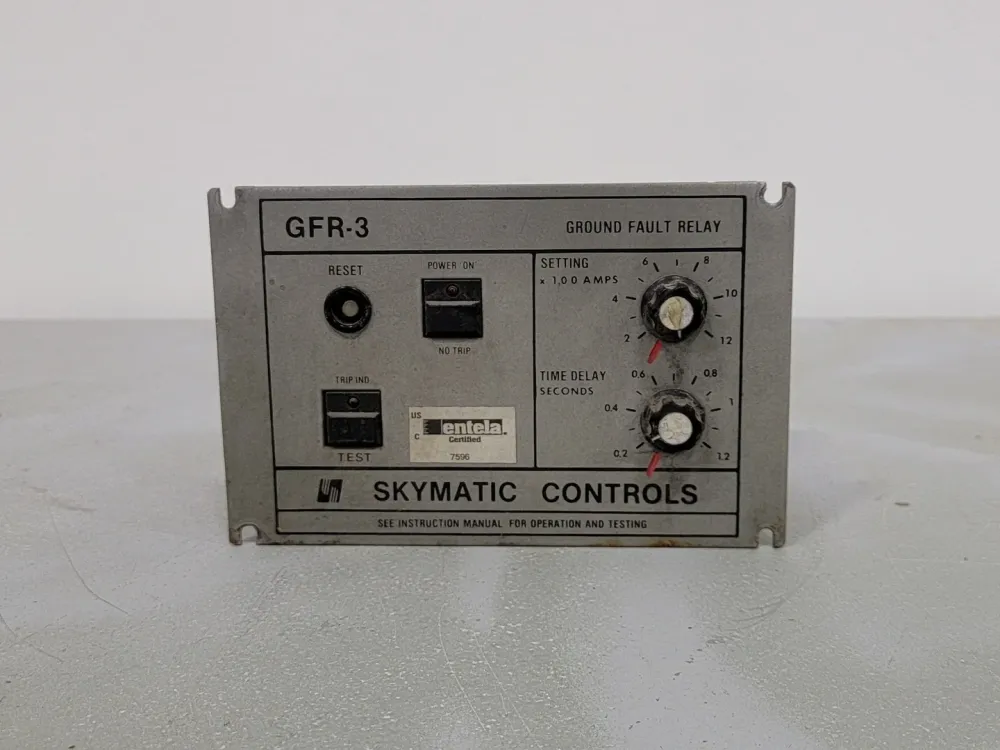

10 Amp Ground Fault Protection Relay GFGR-3
☑ Lange levensduur gegarandeerd
☑ Betrouwbaar in extreme omstandigheden
⇒ Ontdek de perfecte filter
Ground Fault Protection Relay GFR-3 works with Zero Sequence Current Transformer (Sensor). When the Ground Fault occurs, the Sensor sends the signal to trip GFR-3 relay.
| Model | GFGR-3 |
| Made In | CANADA |
| Condition | Used | General |
| Amps | 10 amps |
| Voltage | 120 volts |
| Mounting Style | Plug-In |
| Other Specifications |
|---|
|
Power Supply: 115VAC, + 10%, -20%, 50/60Hz, 9Vamax Tripping Range: 100-1200A Repeatability: Better than 1%. Temperature Range: -10°C thru + 55°C Output Contacts: DPDT, 10A @ 115VAC; 2 – N.O. in series – 1A @ 250VDC Operating Time:</str Gerelateerde producten
