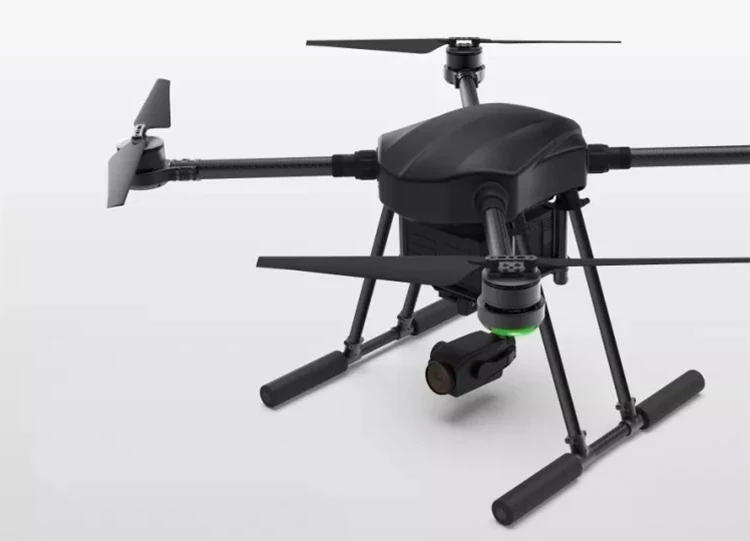

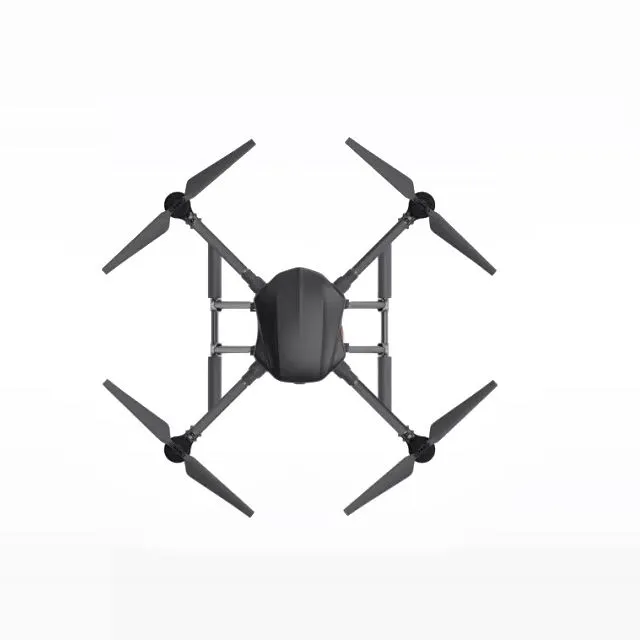

ARRIS EP100 is a light-load platform specially designed for industrial applications. It adopts a modular design concept. The main components can be quickly disassembled, flexible and versatile, and it is handig to customize and expand. The whole machine adopts matte black coating, which is more professional.
The outer diameter of the arm is 30mm, it did not come with motor mount. It compatible with the 6215 power combo, x6 power combo and related items perfectly.
Specifications:
Item Brand: ARRIS
Item Model: ARRIS EP100
Diagotal wheelbase: 1000mm
Arm Diameter: 30mm
Motor Mount: No
Size: 800x800x500mm
Frame weight: 3.5kg
Frame+Power combo weight: 6.5kg
Maximum takeoff weight: 16kg
Effective Payload: 1-5kg
Recommended Power combo:
Motor: 6215 180kv
Propeller: 24×8.5 inch
ESC: 80A FOC
Supply voltage: 12S
Weight: 0.76kg
