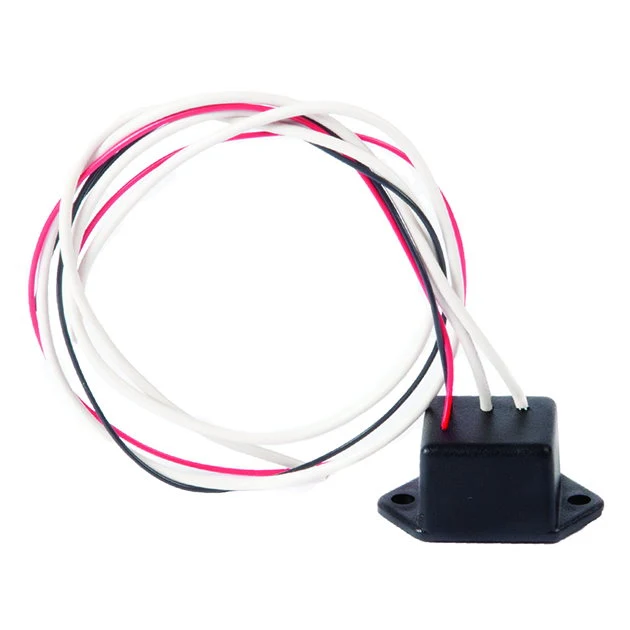

DIG Irrigation RIK-018 DC General Purposes Relay Interface DC Switch
☑ Duurzame componenten voor continu gebruik
☑ Hoogste industriële kwaliteit
⇒ Bestel nu en optimaliseer
DC latching switch-type relay interface module for general purposes
Features
- Use for operation of pump fertilizer injector, fountain, light or any electrical equipment
- Can be used with 720A, 740A and 760A
- RoHS Compliant
Specifications
- Relay function: Single Coil Latching
- Input Voltage: Rated 3VDC
- Input Rated Current: 67mA
- Input Minimum Set/Reset Signal Width: 20miliSecond at 23 Degree C
- Input Coil Resistance: 45 Ohms
- Contact Rated Load: 10Amp and 250VAC, or 10Amp 30VDC
- Contact Maximum Carrying Current: 10 Amps
- Contact Maximum Resistance: 30 milliOhm
- Insulation Resistance: 1,000 Mega Ohms
- Weight: 50g, or 1.76oz
- Length of Input (red, melkwit) and Output (black, black) wires: 45cm, or 18in
