Intermatic – CT2000 – Percentage Cycle Time Switch met CE-Keurmerk

Intermatic – – Percentage Cycle Time Switch
☑ Hoogste industriële kwaliteit
☑ Kostenefficiënte procesoptimalisatie
⇒ Ontdek efficiëntieverhogende componenten

Install Manual

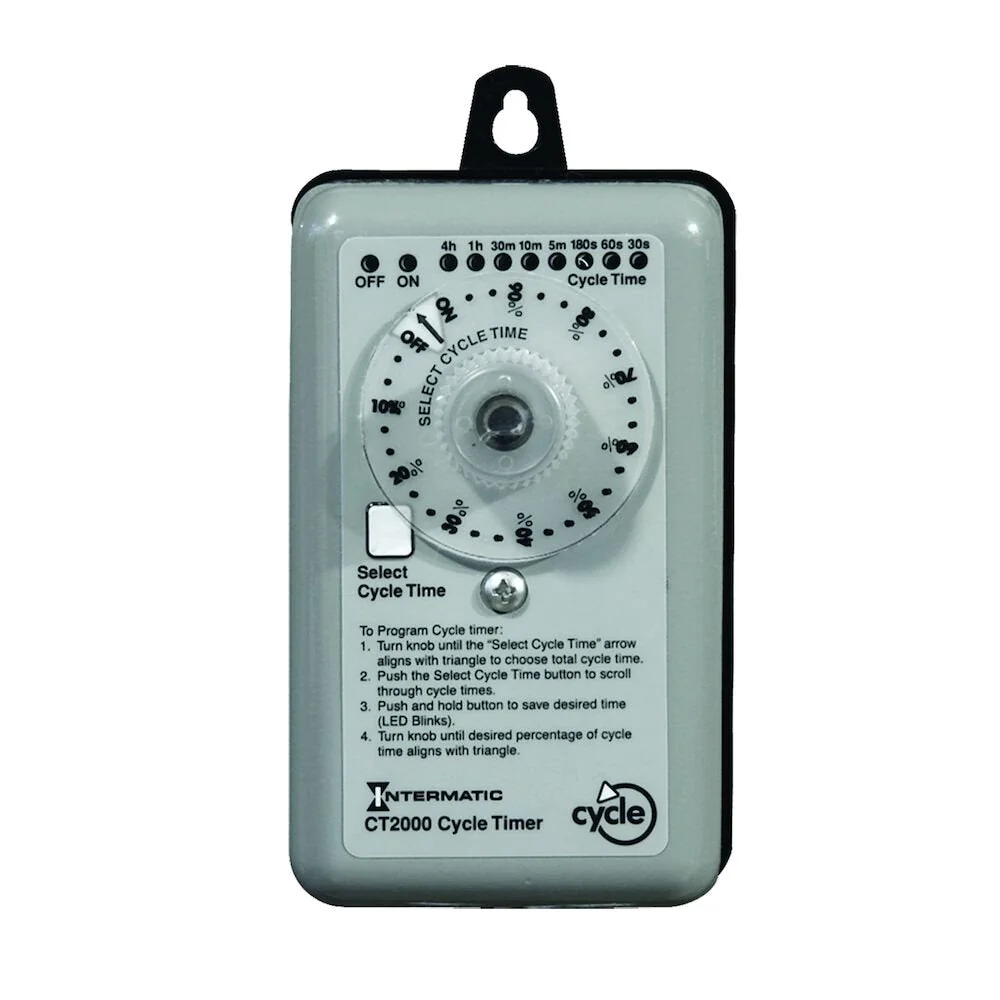

The CT2000 Percentage Cycle Time Switch is a field adjustable timer, offering true flexibility for repetitive cycle times via an upfront control button. The timer provides repetitive cycling for short-cycle applications. The timer enclosure includes two slotted mounting holes on 5″ centers and a ½” knockout for conduit connection.

Features:

• Provides 8 field-selectable cycle durations of 30 seconds, 1, 3, 5, 10, 30 minutes and 1 or 4 hours
• Front cover button enables true flexibility for repetitive cycle times
• Temporary and permanent manual overrides
• 30 separate positions enable precies percentage ON time selection
• User settings stored in non-volatile memory
• No DIP switches to program cycle time
• Type 3R indoor/outdoor aluminum enclosure

Applications:

• Agricult
