Intermatic – EK4537 – NightFox™ Select Grade Locking Type Photocontrol, 347/480 V

Intermatic – – NightFox™ Select Grade Locking Type Photocontrol, 347/
☑ Premium kwaliteitsmaterialen
☑ 100% Tevredenheid gegarandeerd
⇒ Bestel de jouwe vandaag nog!

Spec SheetInstall Manual

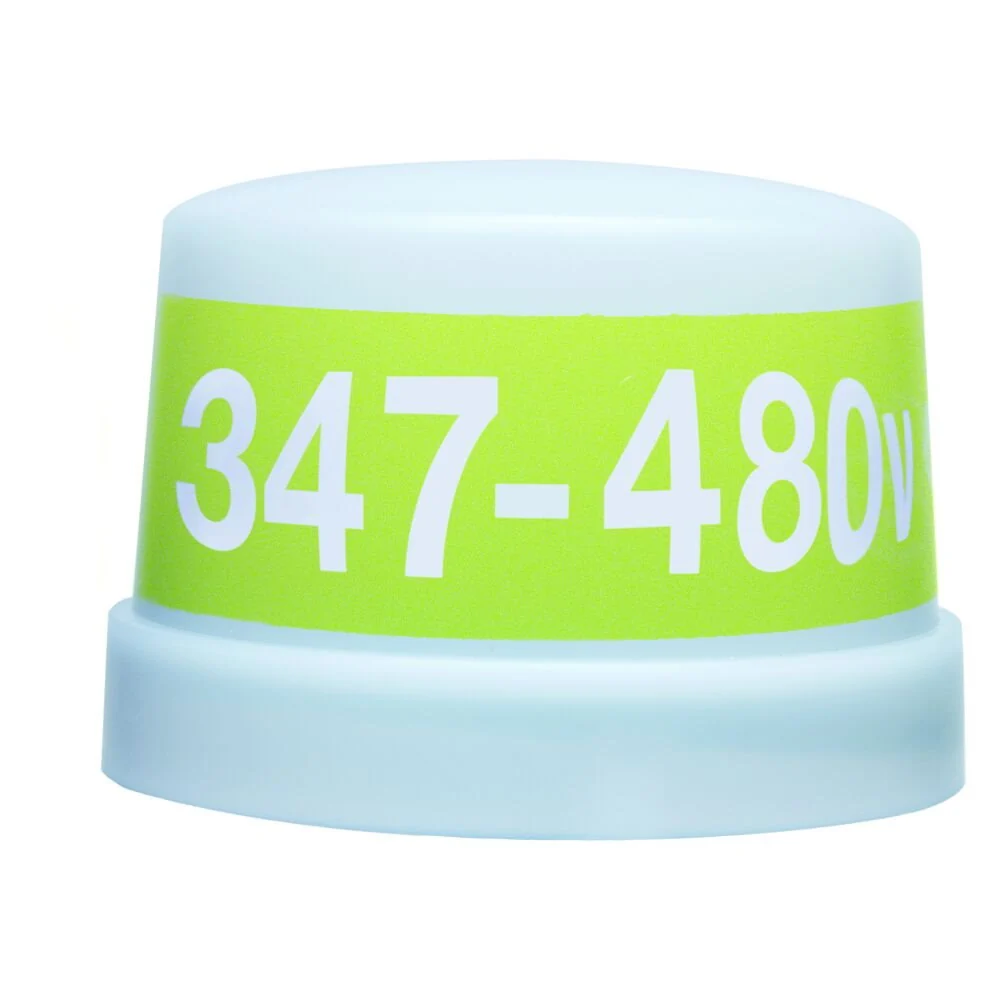

Intermatic EK4537 NightFox™ Select Grade Locking Type Electronic Photocontrol, 347/480 V

Designed to meet a 15-year service life, this photocontrol is LED-compatible and backed by an 8-year warranty.

Features:

• Non-drift silicon light sensor with IR filter
• DC relay with zero-crossing circuitry for extended life
• All components meet 15-year life expectancy
• Conformal coated PCB
• Exceeds 10,000 ON/OFF switching cycles
• Ideal for individueel or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
• 510 J MOV surge protection

Applications:

• Outdoor Lighting Control

Specifications:</
