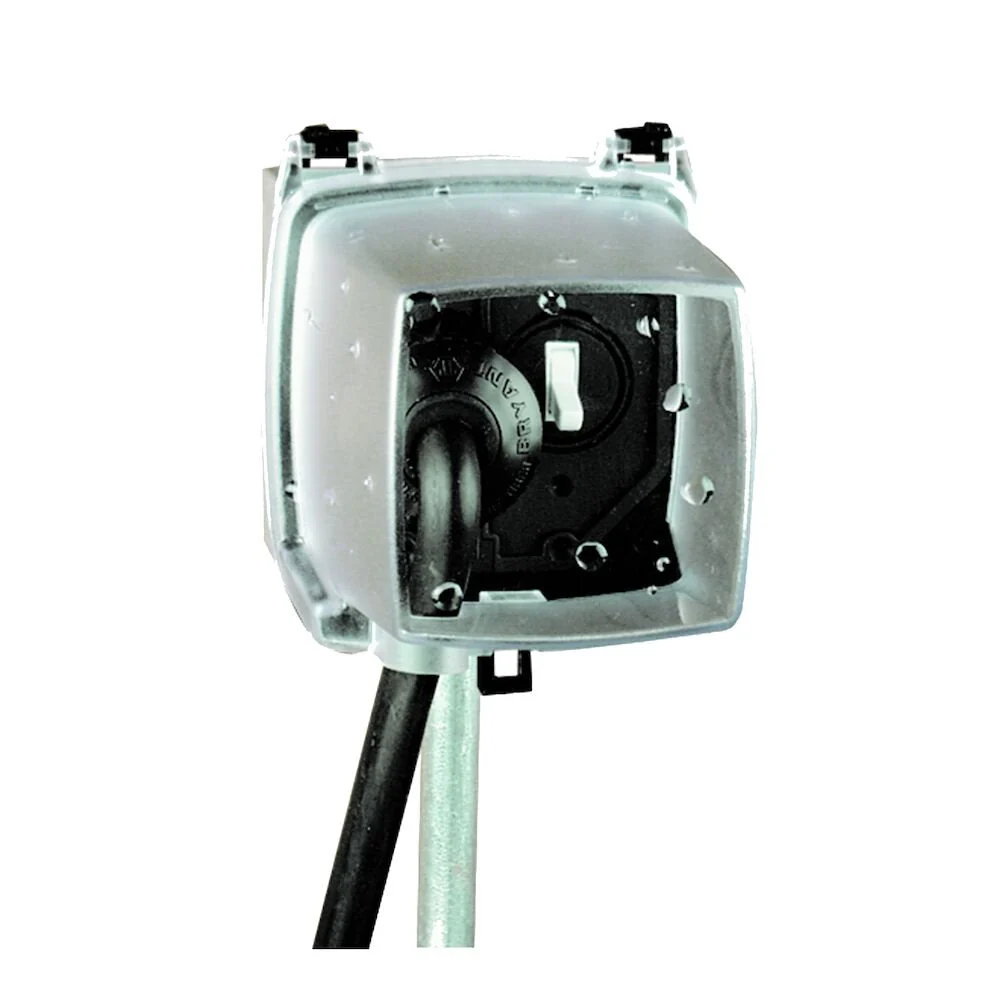

Intermatic – WP1050 – Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 4.75″ Helder

Intermatic – – Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 4.75″
☑ Hoogwaardig roestvrij staal
☑ Extreem duurzaam en slijtvast
⇒ Verzeker stevige verbindingen

Spec SheetInstall Manual

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

• Complies with 2020 NEC Article 314.15 for damp and wet locations
• UL Certified for Type 3R outdoor enclosures
• Meets requirements for cold impact testing: -60° F (-51° C)
• Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
• 1?8″ (3 mm) compact neoprene gasket with slits for mounting screws
• Two inserts provided with all models for multiple installations
• Max cord size: (2) #14 AWG or (1) #12 AWG, WP1050 (2) #14 AWG or (1) #10 AWG
• Warranty: 1-year limited

<
