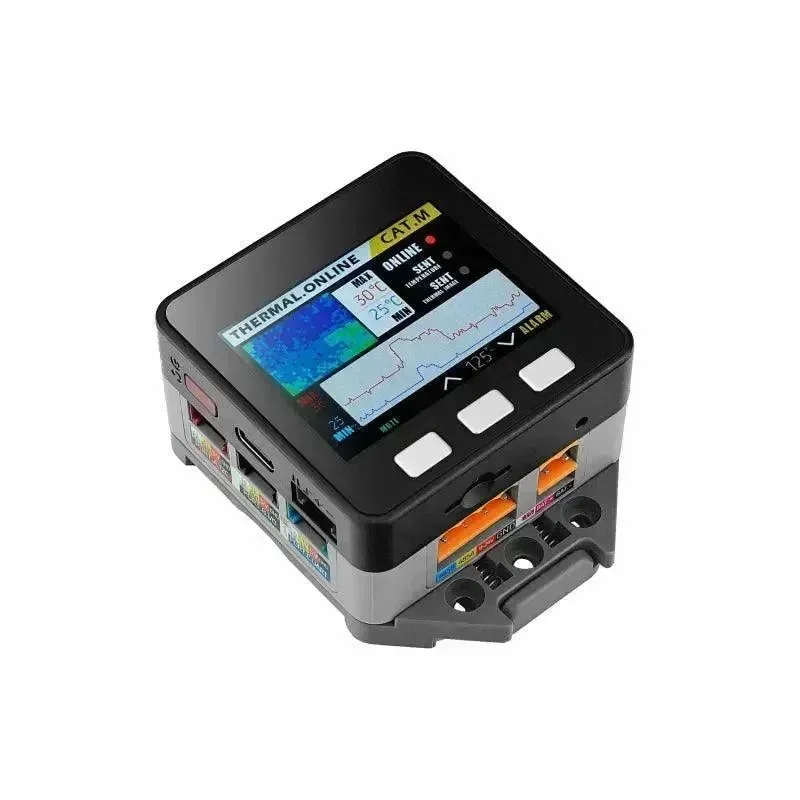

M5stack IoT Base CAT-M Kit (SIM7080G) with Thermisch Camera (MLX90640)

M5stack IoT Base CAT-M Kit (SIM ) with Thermal Camera ● Professionele kwaliteit gegarandeerd ● Ultiem comfort ▶ Ontdek professionele oplossingen

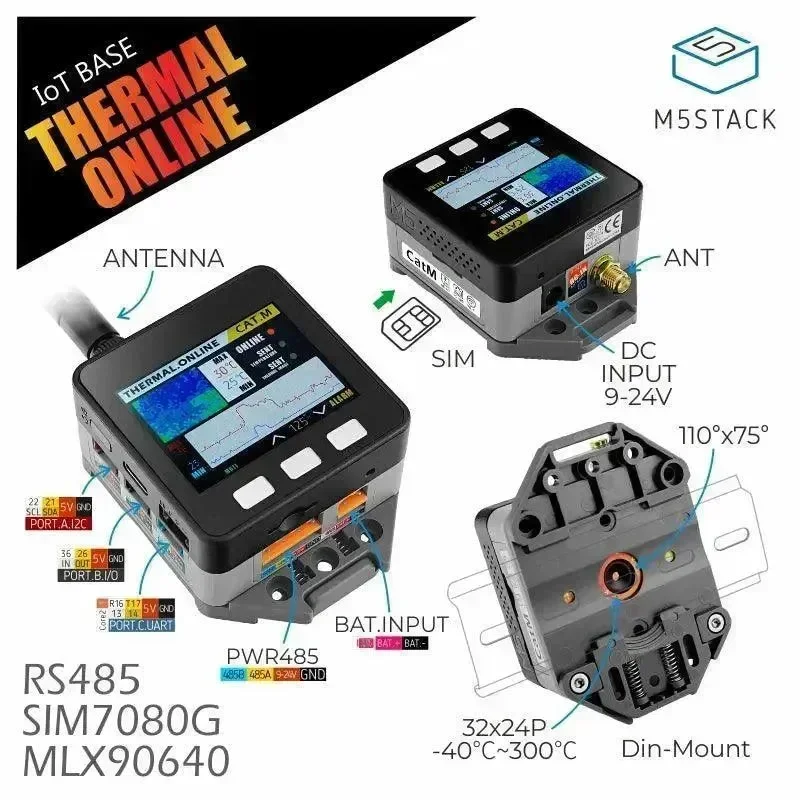

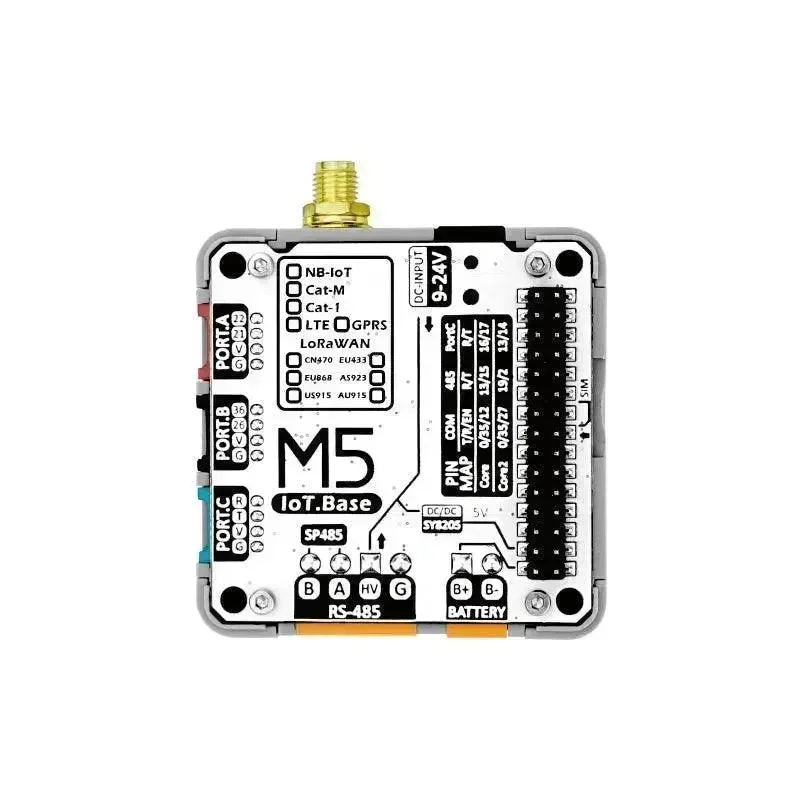

ThermalOnline Cat-M is an industrial-grade remote warmte monitoring kit. Adopt the MLX90640 IR thermal sensor (32×24 array), M5Stack BASIC Core(ESP32 controller), and SIM7080G module, support CatM/NB-IoT/ Wi-Fi` communications, for non-contact remote temperature measurement. The rich expansion options including I2C + UART + GPIO + RS485 + Battery-power ports, suitable for many applications.

Product Features

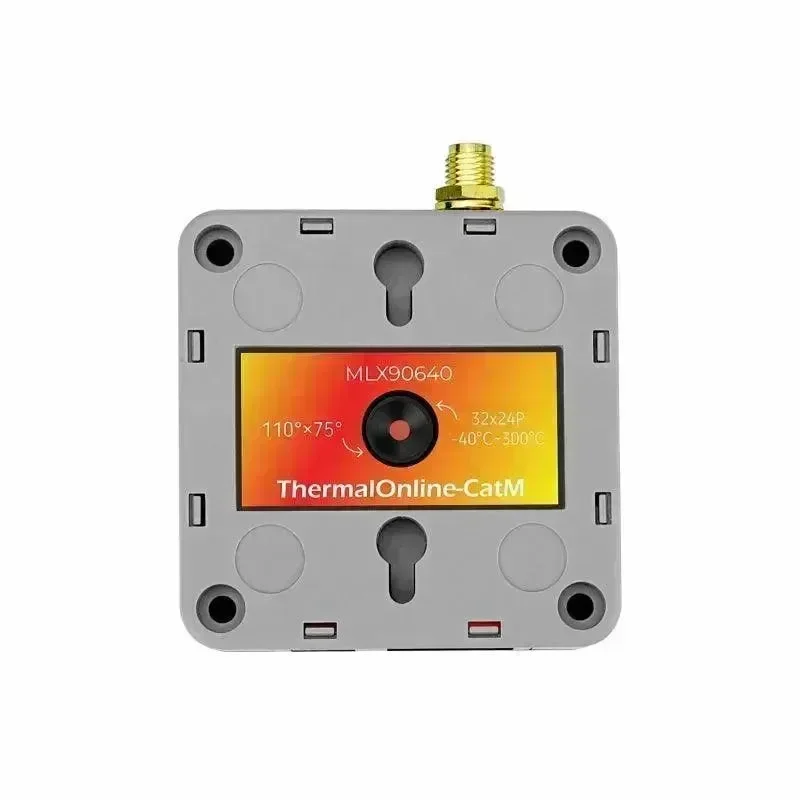

• MLX90640 ( 32×24 IR pixel array, temperature range: -40°C ~ 300°C , I2C port: 0x33 )
• Module Solution: SIM7080G
• Cat-M & NB-IoT modes with Global Coverage
• UART interface/ AT command control
• Global version/ multi-band support
• Card slot: MicroSIM
• Antenna: external SMA antenna
• Module certifications:
  • Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF
  • Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/I
