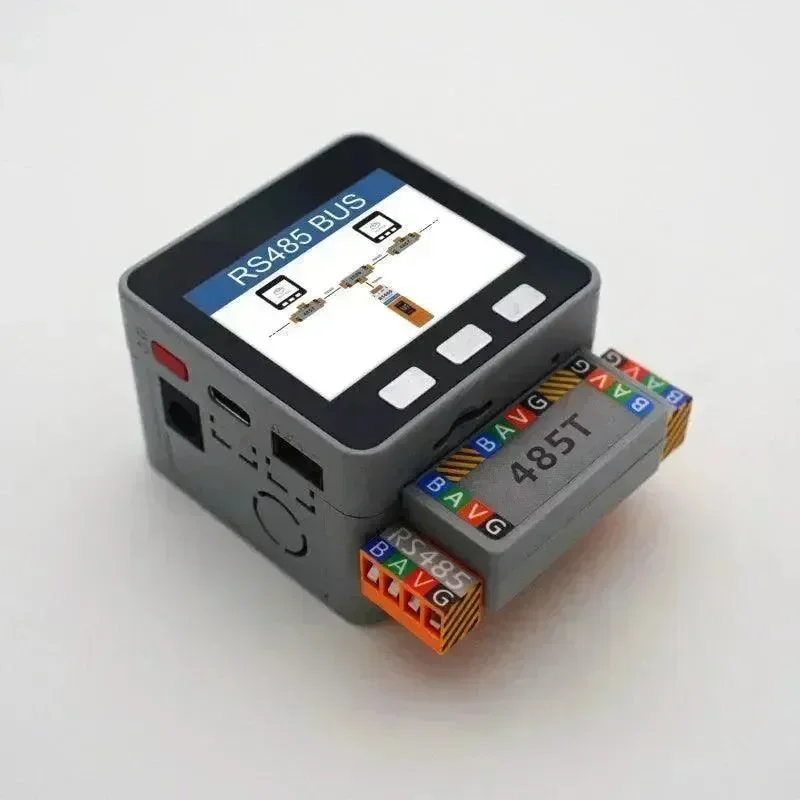

M5Stack T-Shaped Connector
☑ Extreem duurzame constructie
☑ Hoogwaardig roestvrij staal
⇒ Verhoog uw productiviteit vandaag

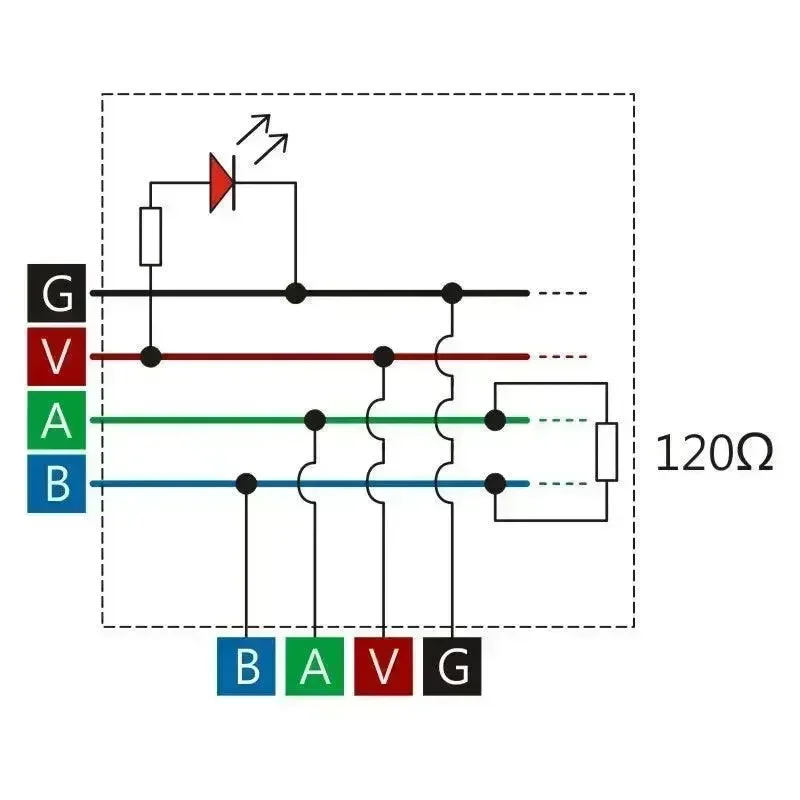

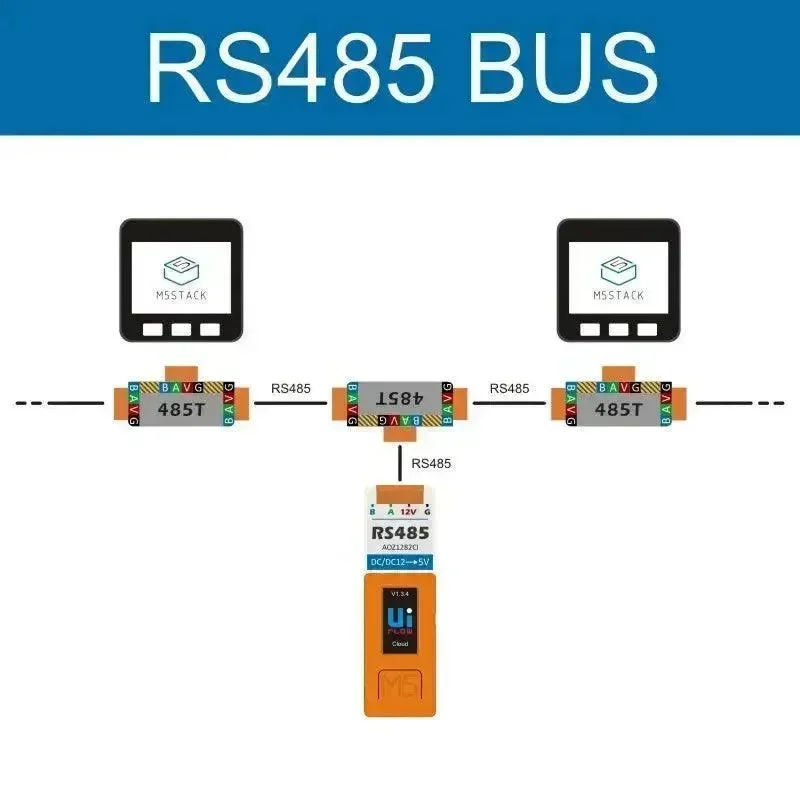

485T, This is a T-shape connector for RS485 communication, which can apply to point-to-point, one point to multi-point connections, plus a POWER LED for indication. The terminal connector specification is 4-pin HT3.96. Many M5 products share this type of connector, such as PLC, Base26, HAT-RS485, etc.
Product Features
Interface type: 4 Pin 3.96mm terminal block
Built-in power indicator: red
Include
1x 485T
Specification
| Resources | Parameter |
|---|---|
| Net weight | 15g |
| Gross weight | 24g |
| Product Size | 56*26*17mm |
| Package Size | 55*55*20mm |
……..
